Service Cranes

Service cranes are used for generic handling needs or for maintenance purposes. They are usually controlled by RC or remote push button units. Depending on the applications, lifting system is available with open winch or hoist, either with chain or rope.

Single girder crane

The main structure of crane is composed of box steel beams or profiled ones coupled with travelling motorized end carriages. The lifting systems consist in electric hoist rope or chain which run on beams allowing horizontal movements. For special applications, the single bridge crane may be suspended on a metallic structure.

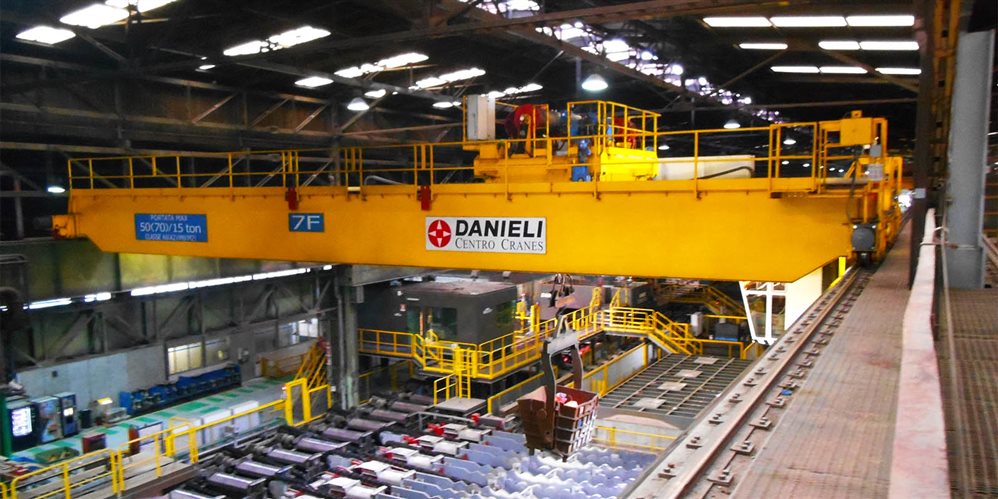

Double girder crane

The main structure of crane is composed of box steel two beams or profiled ones coupling with travelling motorized carriages. The lifting system consists in winch or hoist in accordance to the requirements which run on beams allowing horizontal movements.

Standard configurations
Capacities:                                             from 16kN to 500kN
Span:                                                         from 12 to 25m
Classes:                                                   according to FEM A4 M4/ A5 M5

Specific features for peculiar environments conditions, such as extra dusty, aggressive atmosphere, explosive, etc., are available on demand.
